What did you do for your ZHP/ BMW / MINI today? #2

Quote:

---

Originally Posted by midlandtech

Just won an ebay auction for a 3.46 diff.... the modding continues

---

You're gonna love this diff Steve! :thumbsup


Sent from my iPad using Tapatalk HD

Quote:

---

Originally Posted by midlandtech

Just won an ebay auction for a 3.46 diff.... the modding continues

---

:like

I love the RPM range! Every gear has a ton of torque.

Quote:

---

Originally Posted by cakM3

You're gonna love this diff Steve! :thumbsup


Sent from my iPad using Tapatalk HD

---

Ya I hope so picked it up for 100 bux shipped

taptalk + Note 3

:thumbsup

Sent from my SM-N900T using Tapatalk

I had to do a non voluntary differential swap after mine failed on the interstate (at only 140K! WTF, right?). Turns out that the diff is the same as any E-46 M/T diff, but a flange swap is mandatory to make it link up to the ZHP output axles. If you don't want to do a flange swap, you have to replace form the hub up. Steve Wheeler in Lake City FL did the work on that and he did a fantastic job.
Anyways, I just put my two cents in since I saw you were talking about your diff.
Today, I did a transmission fluid change to Redline D4 ATF on my 2003 ZHP 6 spd m/t. I also upgraded to magnetic drain and fill plugs. I instantly noticed somewhat smoother shifting and faster synchro spin-ups.
The plugs I used were "M18X1.5X12 = BMW CAR, LATE TRANSMISSIONS, STANDARD" from dimple, http://www.drainplugmagnets.com/
They were about 1/4" shorter in length than the OE plugs, but the threads matched up perfectly. They also included 4 extra crush washers. Costs, $30 each.

I found that the torque spec for almost every transmission is 37 ft-lbs, but for 6 spd transmissions, it's 26.
Torque specs here http://mrmaico.smugmug.com/Cars/BMW-...15718AM-XL.jpg
Hope that all helps people who plan on doing the same projects.

Quote:

---

Originally Posted by Phoenix

I had to do a non voluntary differential swap after mine failed on the interstate (at only 140K! WTF, right?). Turns out that the diff is the same as any E-46 M/T diff, but a flange swap is mandatory to make it link up to the ZHP output axles. If you don't want to do a flange swap, you have to replace form the hub up. Steve Wheeler in Lake City FL did the work on that and he did a fantastic job.
Anyways, I just put my two cents in since I saw you were talking about your diff.
Today, I did a transmission fluid change to Redline D4 ATF on my 2003 ZHP 6 spd m/t. I also upgraded to magnetic drain and fill plugs. I instantly noticed somewhat smoother shifting and faster synchro spin-ups.
The plugs I used were "M18X1.5X12 = BMW CAR, LATE TRANSMISSIONS, STANDARD" from dimple, http://www.drainplugmagnets.com/
They were about 1/4" shorter in length than the OE plugs, but the threads matched up perfectly. They also included 4 extra crush washers. Costs, $30 each.

I found that the torque spec for almost every transmission is 37 ft-lbs, but for 6 spd transmissions, it's 26.
Torque specs here http://mrmaico.smugmug.com/Cars/BMW-...15718AM-XL.jpg
Hope that all helps people who plan on doing the same projects.

---

Yup I'm planning on swapping input and output flanges from the stock diff over to this one once it comes in. I'm super excited to see what difference it makes.

taptalk + Note 3

Quote:

---

Originally Posted by E_Rak

PSH. Didn't want a shoutout anyway...

---

Special thanks to Evan who sat in the back of the car and watched me finish up then drove it after!

Impressions:
Slop down 85% (total guess). It's a lot tighter to the point where the slop is acceptable - it's no gated shifter - even some new cars have more play in their shifters.
Shifts are notchier and more direct.
Downward throws (1-2, 3-4 etc) are noticeably shorter, but the upward throws aren't too much different.
Totally worth it. I'm very happy with it so far.

Quote:

---

Originally Posted by Stigissimo

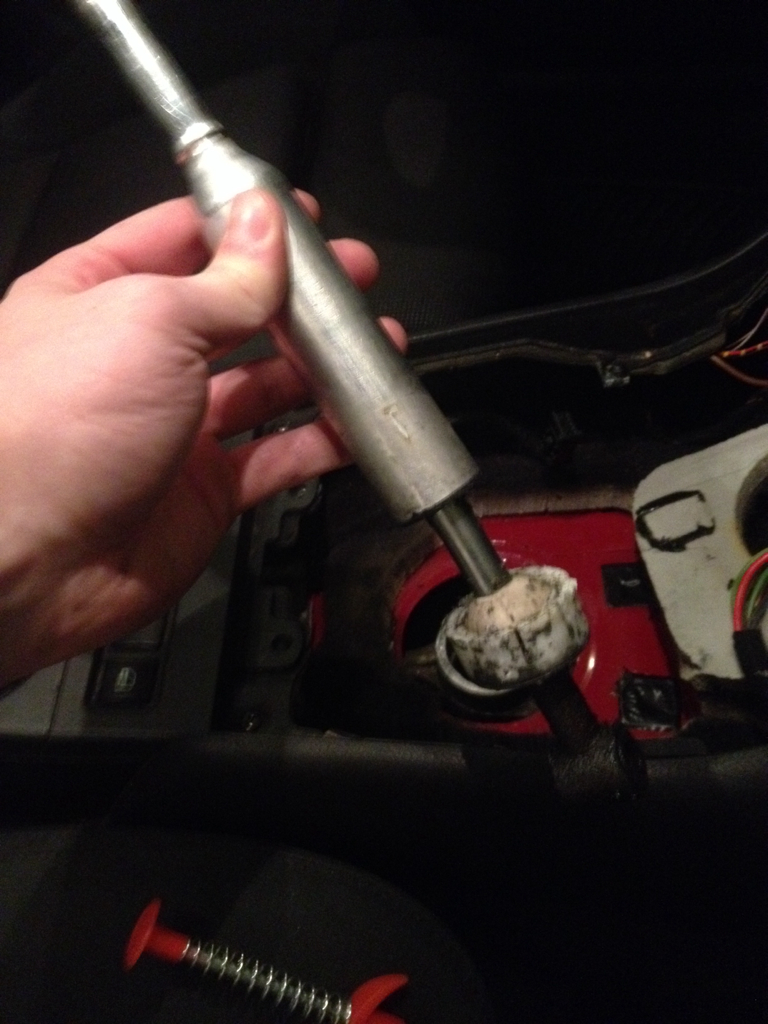

Switched over to BMW perf SSK last night. Special thanks goes out to hornung for the tip on how to get that damn plastic bearing out of the shifter arm:

Attachment 11792

As well as special thanks to avetiso for his boss DIY. Somehow I managed to not drop the pin clip at any time during the process... Beginners luck maybe

---

Nice! I am really excited to hear your thoughts on the ssk.

Got my DICE MediaBridge installed today. It went pretty well. I'll do a write up later after I have some time to use it more.

(Does anybody know how to shuffle tracks on a USB thumb drive?)

Attachment 11797

Washed, waxed and went to a rather large euro meet. Some guy pointed at my car and said, "wow it's a E36 wagon, pretty rare". I lol'd pretty hard..

Saw a awesome M3CSL clone, 3.0CS, Benz 600 grosser, McLaren MPC, amongst other nice cars. Pics to come!
