JP, did you use plasti gage to measure the tolerance before you installed? What is like to work with?
I need to start assembling the S52 I have at home..
I did not. I know Carl has some as I saw it the other day but I've never used it before. You have to remember that tolerances on the M10 are not nearly as tight as the S52 so I didn't see the need. Had I been building a 2.2 I would have definitely used itQuote:
Originally Posted by Johal E32
So how did you determine that you were .25mm off of spec?Quote:
Originally Posted by Hermes
We measured the rods themselves. It's a pita
Look at the rod cap. You can tell they ground it a little bit where I marked with green
http://i29.photobucket.com/albums/c2...a7d4c9bf3a.jpg
Is that a typical practice...to machine the rod caps? Seems like it'll be out of round if you do that.Quote:
Originally Posted by Hermes
Sent from my Nexus 6
Yes. It doesn't matter much but since we're going for maximum tolerances it has to be perfect. Ben builds race engines and is anal so we just do what he wants.Quote:
Originally Posted by Hornung418
They machine the hole so it is correct again, that's where we think the missing .25mm went. On a normal street engine it wouldn't matter since most M10s don't run that high of compression, but since we're going for 11.5:1 we need it correct.
For example, Ben built this two weeks ago for my buddy Mark while he was out here to put my head together:

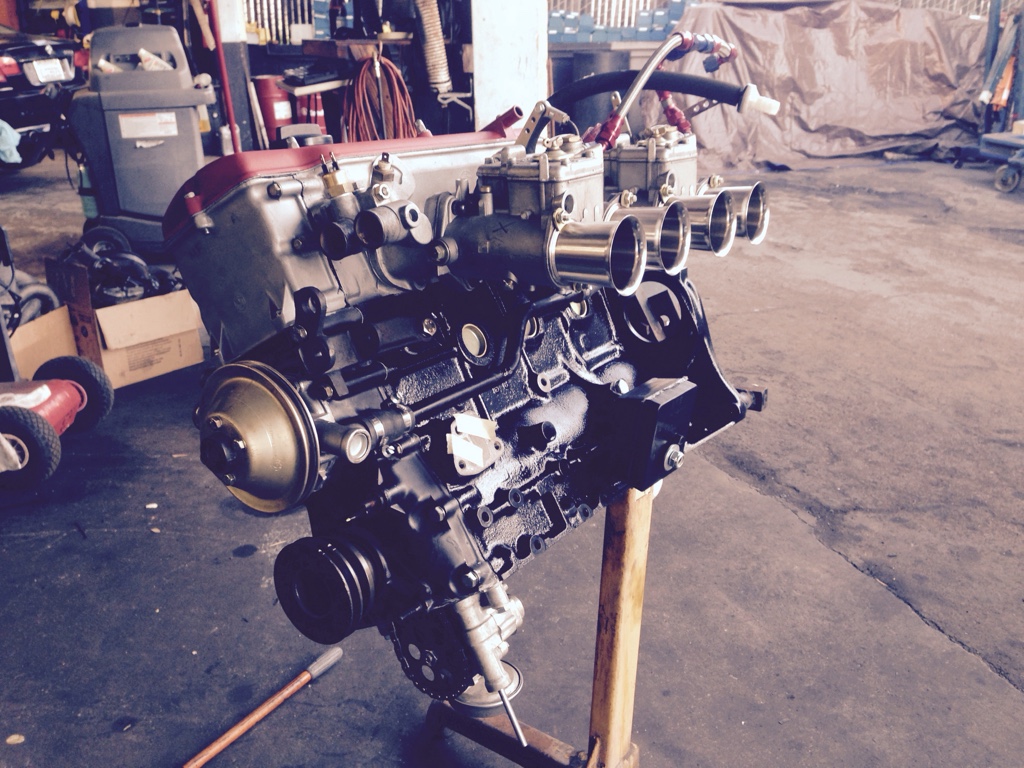

Attachment 18672
That is running 13:1 with a 316 cam so tolerances are important. This is why he needed a new engine
Attachment 18673
I used plastiguage when we built my motor. Works fine for 24v builds..Quote:
Originally Posted by Johal E32
Quote:
Originally Posted by Hermes

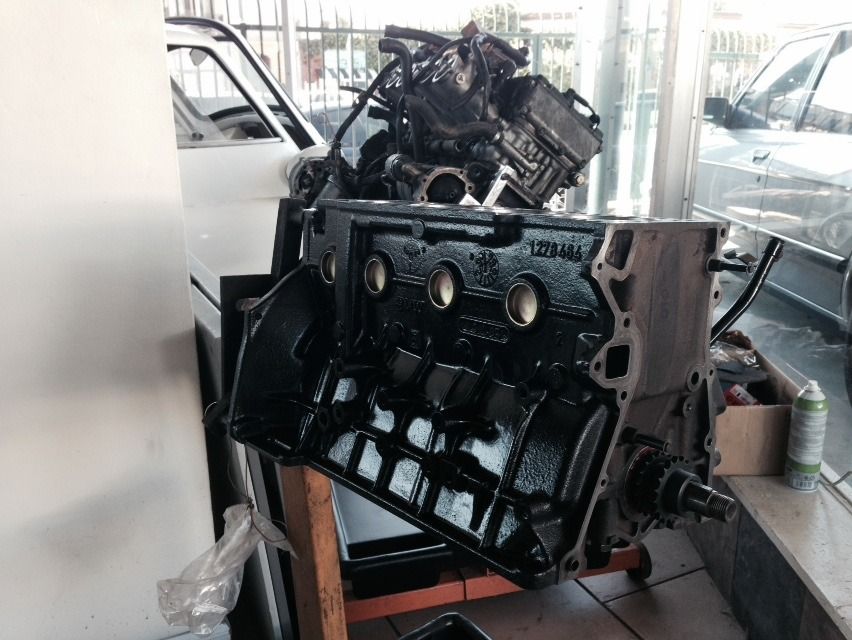

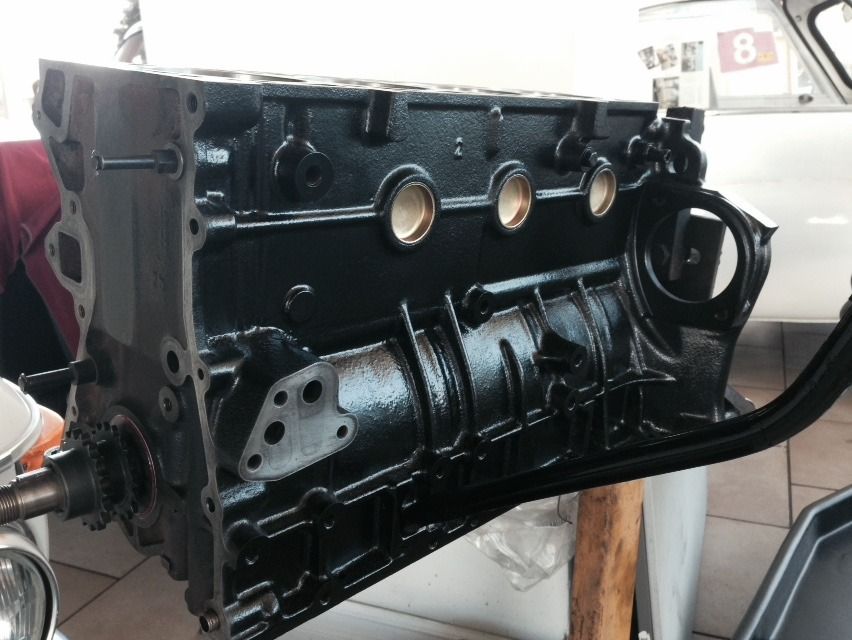

Attachment 18676
Yup, but it is a racecar...Quote:
Originally Posted by wertyu78
He was still running the stock 02 oil pump, he has since moved on to the 1.8/M3 pump
Edit: it's Imola ;)
So what do you use to install them?
Sent from my Nexus 6
I used this:Quote:
Originally Posted by Hornung418
Attachment 18728
It's actually a bearing race install tool
And a BFH?
Medium FH ;)
(You can see it in the background)

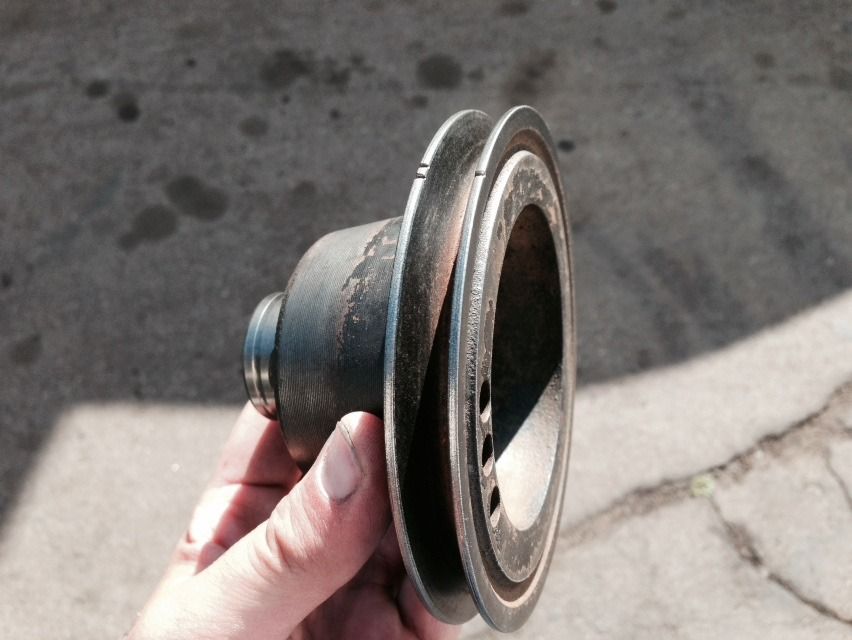

Found a late NK single belt crank pulley (cast). I need to dig some more because we think an early one is around here somewhere (stamped)
http://i29.photobucket.com/albums/c2...096B5E675C.jpg

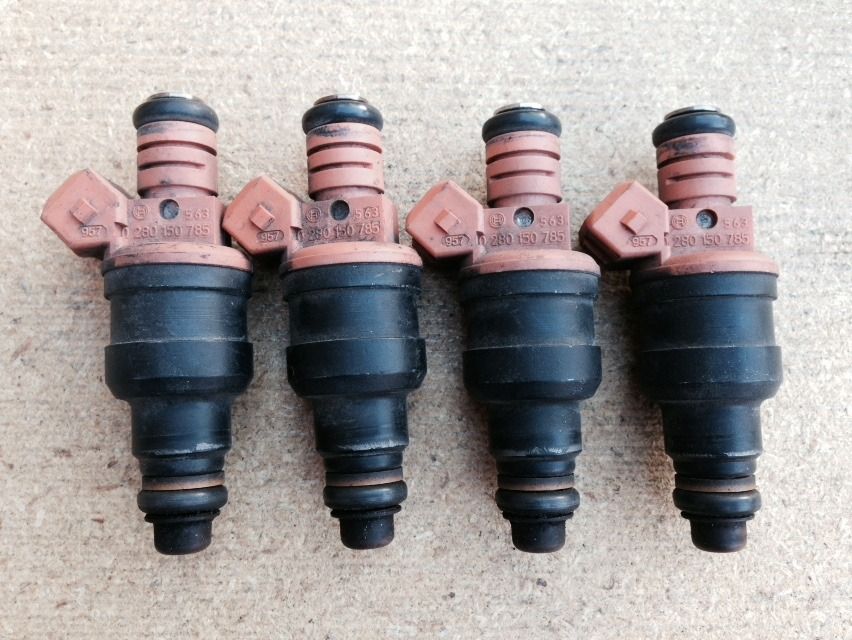

Edit: my 30# injectors arrived
http://i29.photobucket.com/albums/c2...D4C7B3BCBC.jpg
Lol yeah I see it now.Quote:
Originally Posted by Hermes
:roflQuote:
Originally Posted by Hermes
If you need a random e30 part pm me and I probably have it.
I'll definitely let you know if I need anything. Thanks!Quote:
Originally Posted by Johnmadd
Crank pulley cleaned. I'll paint it tomorrow
http://i29.photobucket.com/albums/c2...967C97AA1B.jpg
http://i29.photobucket.com/albums/c2...152F49AB2F.jpg
In case you're interested in numbers
Stock E21 pulley = 1.9lbs
Cast NK = 1.7lbs
Stamped NK = 1.1lbs
I need to dig some more but I might have found a stamped one
NK= Neue Klasse?Quote:
Originally Posted by Hermes
YupQuote:
Originally Posted by Hornung418
I may need to hire you to help with my S14.
t.
lolQuote:
Originally Posted by tkundhi
Stuart is more proficient in the DOHC stuff. I'll definitely try to help if I can
*update
correct sized rods, balanced
http://i29.photobucket.com/albums/c2...0D1AC1F673.jpg
pistons on, only stabbed myself once trying to get the wrist pins in
http://i29.photobucket.com/albums/c2...1B33647823.jpg
http://i29.photobucket.com/albums/c2...9B60F995EF.jpg
http://i29.photobucket.com/albums/c2...56A80BB051.jpg
new rear main seal
http://i29.photobucket.com/albums/c2...A8134F2522.jpg
http://i29.photobucket.com/albums/c2...D56ACABC7F.jpg
http://i29.photobucket.com/albums/c2...D11D41AAFA.jpg
rebuilt pump, nos chains, new slide rail/tensioner
http://i29.photobucket.com/albums/c2...BB073B7B06.jpg
Toyota RTV everywhere in addition to new gaskets
http://i29.photobucket.com/albums/c2...D7B6AF4C8D.jpg
new front seal, new hardware
http://i29.photobucket.com/albums/c2...6175CD4941.jpg
Oil pan, crank pulley, water pump installed. I reused my E21 water pump; I thought about going to the E30 setup but I don't see the need to move my radiator forward to the M20 position yet
http://i29.photobucket.com/albums/c2...500721E0B2.jpg
motor mounts and oil filter housing installed
http://i29.photobucket.com/albums/c2...ACA943AA12.jpg
http://i29.photobucket.com/albums/c2...DDAE6265D6.jpg
Next up is alternator bracket and starter. Then comes head, intake, and wiring.
Awesome work! That's one hell of a background for the engine pics. Focused more on them than the build lol.
Great work, come assemble my S52 next, lol.
JP, engine build looks really, really nice. I will look forward to the concours photos in the near future!Quote:
Originally Posted by Hermes
Also, I think that you may have some additional weight savings on the pulley by reducing the added fur on the right side... 😀
hahahaha... thanks! Yeah, the M88 and Katy Perry make good friends for my engine.Quote:
Originally Posted by Hornung418
lol... I have no experience with M5x internals. I have disassembled a M54B30, but I didn't pay that much attention; I was just trying to get the crank.Quote:
Originally Posted by Johal E32
Thanks Brett! I doubt I will be having any concours photos photos soon, I still need a new paint job.Quote:
Originally Posted by brettbimmer
I did clean up the pulley a little bit. I needed to polish the front seal surface so I got the fur off at that point ;)
http://i29.photobucket.com/albums/c2...7D0065D055.jpg
In case anybody else was distracted by the background:
http://i29.photobucket.com/albums/c2...D915C6859D.jpg
Mmmmm
"No flamesuit required"
head 'on'... Ben will be here Friday to actually put things together/set timing/wiring/etc.
http://i29.photobucket.com/albums/c2...99CE53F078.jpg
http://i29.photobucket.com/albums/c2...A31A780F87.jpg
'74 casting, more Toyota, new gasket, new hardware
http://i29.photobucket.com/albums/c2...8C4BDE0A52.jpg
water pump pulley painted, alternator bracket painted/installed, oil filter installed, timing mark painted on crank pulley
http://i29.photobucket.com/albums/c2...2CB772E141.jpg
intake
http://i29.photobucket.com/albums/c2...041926C9F8.jpg
exhaust
http://i29.photobucket.com/albums/c2...B1A08EF569.jpg
cleaned up the surface rust and primed the subframe
http://i29.photobucket.com/albums/c2...9B10E8A466.jpg
painted
http://i29.photobucket.com/albums/c2...03993934e6.jpg
needs a wash
http://i29.photobucket.com/albums/c2...271CB5BCC3.jpg
few more last things... head actually on/timing set. Need to pull a tii distributor out of the pile and check it out/install. Will physically install the engine tomorrow and deal with fine tuning later.
http://i29.photobucket.com/albums/c2...7254D15CA2.jpg
http://i29.photobucket.com/albums/c2...38391937_1.jpg
http://i29.photobucket.com/albums/c2...48301926_1.jpg
you might notice that my stock downpipe/cat has been removed, headers sitting out for test fitting
http://i29.photobucket.com/albums/c2...F56352B8_3.jpg
btw, I finally mounted my bumper correctly (nyloc ftw)
http://i29.photobucket.com/albums/c2...AF2598E6_3.jpg
http://i29.photobucket.com/albums/c2...BB587E08_1.jpg
ready for the new engine
http://i29.photobucket.com/albums/c2...833AB18B_2.jpg
http://i29.photobucket.com/albums/c2...E93EB4B637.jpg
just hanging out with my shark nosed friend
http://i29.photobucket.com/albums/c2...i/IMG_3517.jpg
Pulled the stock speedo cable/O2 light reset box, replaced with an equal length 2002 cable
http://i29.photobucket.com/albums/c2...4DEC6F98F3.jpg
maybe I'll repaint this in a few years
http://i29.photobucket.com/albums/c2...123A9A1CCA.jpg
Cut out the battery tray so I can use a 325i airbox
http://i29.photobucket.com/albums/c2...0B00BF4F22.jpg
Flywheel/clutch/pressure plate installed
http://i29.photobucket.com/albums/c2...B6A1960B2E.jpg
http://i29.photobucket.com/albums/c2...43B8F50B6B.jpg
In
http://i29.photobucket.com/albums/c2...B0C04D9C38.jpg
http://i29.photobucket.com/albums/c2...7A723A50E8.jpg
Test fit the headers, will need some modifications
http://i29.photobucket.com/albums/c2...D418DF21C9.jpg
Lots of room without AC or the low mount alternator
http://i29.photobucket.com/albums/c2...15787E0B92.jpg
Radiator & shroud on. NOS early E21 small fan blade
http://i29.photobucket.com/albums/c2...F7DEA2C492.jpg
new coolant pipe
http://i29.photobucket.com/albums/c2...7AAB92007E.jpg
Installed the rest of the coolant hoses and the thermostat. I think I might change the alternator to the 80A 318i version from the 90A 325i version I currently have. I don't really need the extra 10 amps as the stock E21 was something stupid like 65A, but because the 90A is a hard mount vs the 80A has bushings and is the correct one for an E30 M10.
http://i29.photobucket.com/albums/c2...FF189DF70B.jpg
