Thanks! Honestly I have no idea what kind of power this will make as Ben hasn't built an engine exactly like this before, just very similar.Quote:
Originally Posted by TigerTater
The E30 engine I used as my basis in stock form produced 103hp as a 9.5:1, 1766cc, 264*/7mm lift cam, L-Jet injected setup.
Mine will be 2036cc, 11.5:1, 287*/11mm lift cam, and running LH-Jet. I should easily pass 120hp, it's just the top end of the range that I don't know. Hopefully I will be in the 130-150hp range
I hope you will be at 160hp. That Engine might think its a freak and output more. :)
sent from my phone

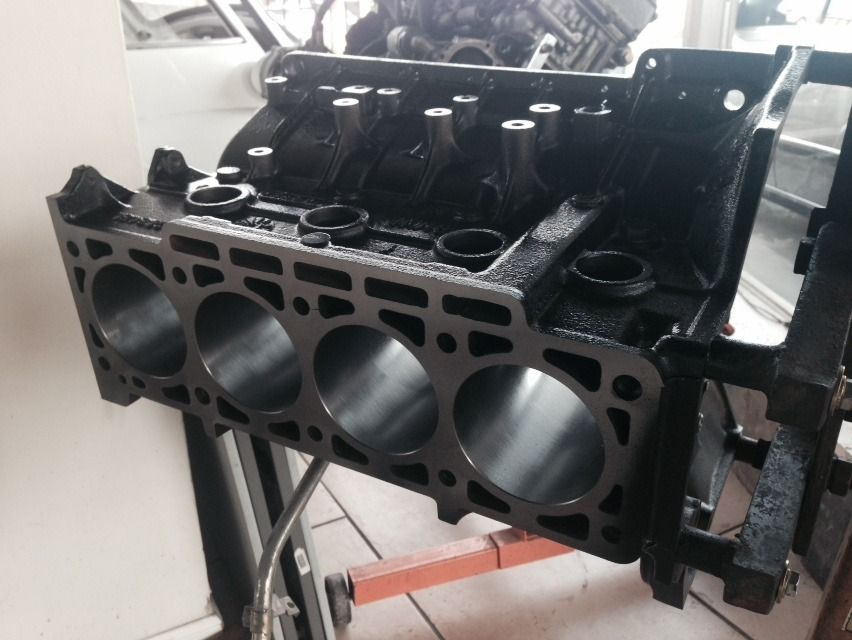

Block back and painted
http://i29.photobucket.com/albums/c2...1974BBF8C9.jpg

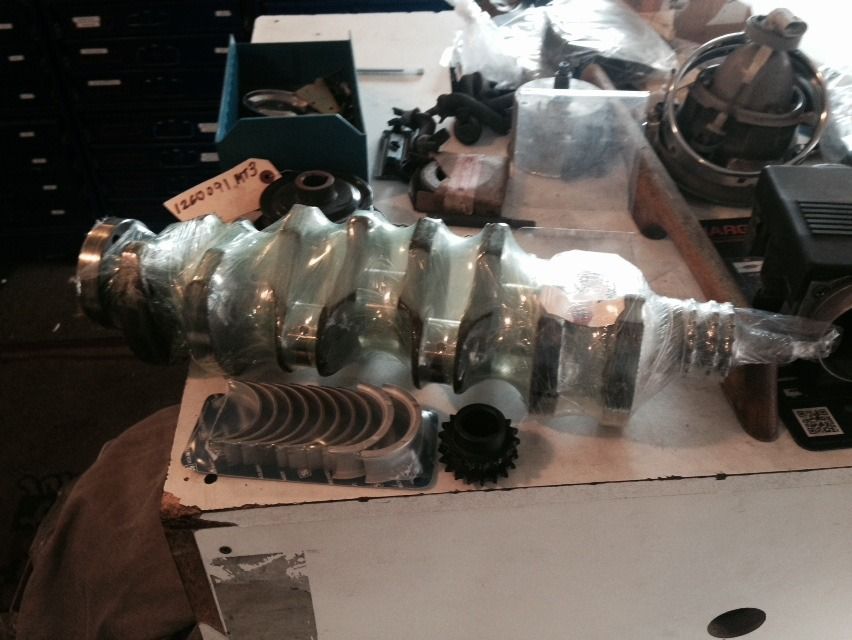

Crank polished
http://i29.photobucket.com/albums/c2...1B2F0F8743.jpg

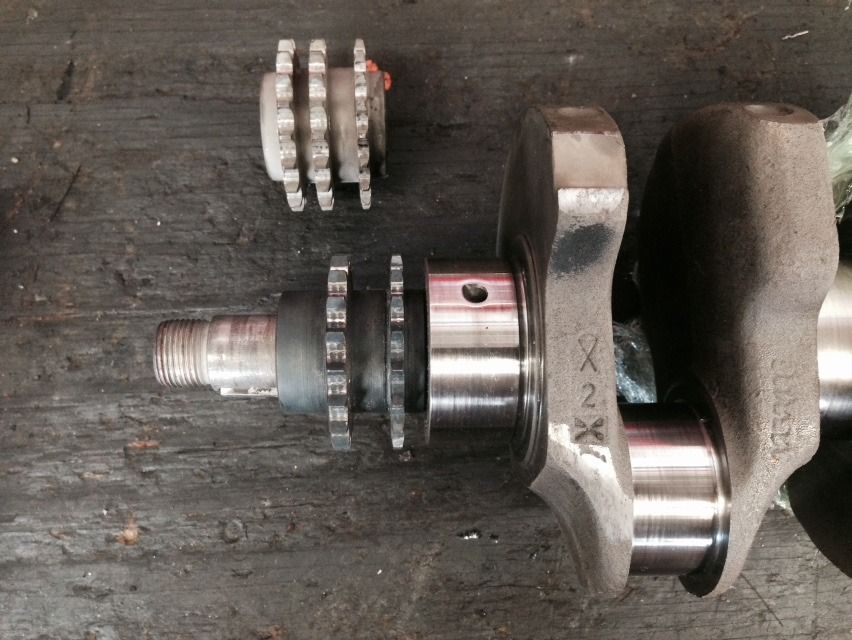

Sprocket swapped
http://i29.photobucket.com/albums/c2...3C6CA0BFFE.jpg

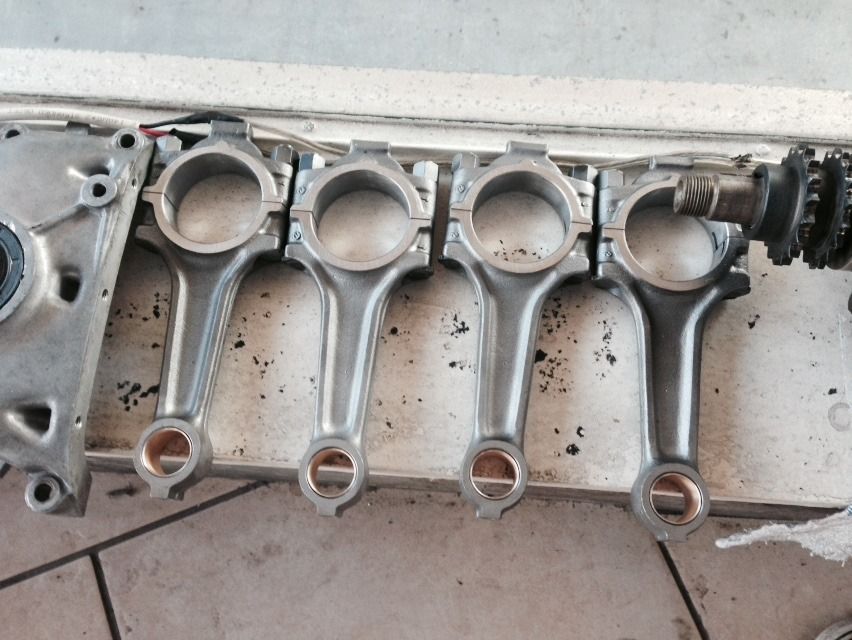

Rods sized for wrist pins and balanced
http://i29.photobucket.com/albums/c2...DE3A0FAEBA.jpg

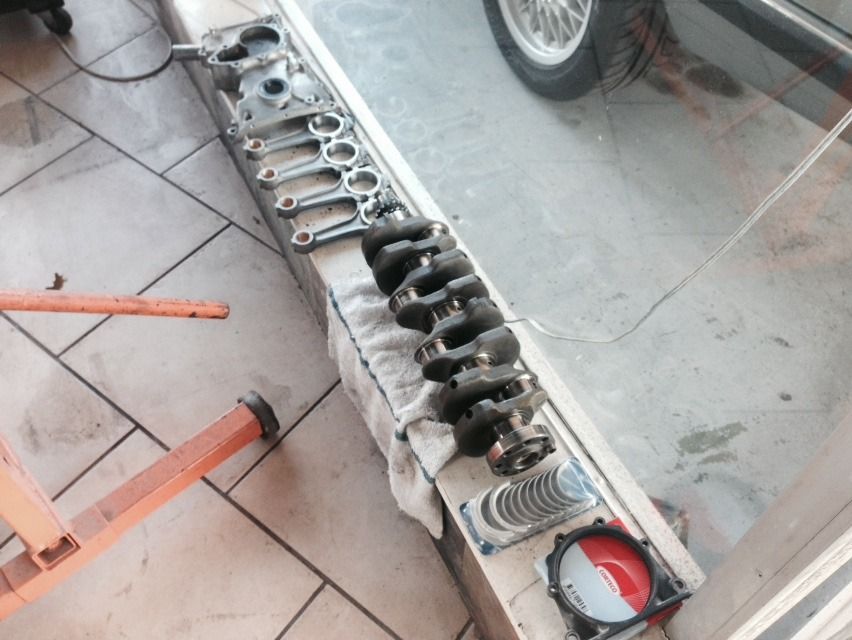

Will hopefully install the crank today
http://i29.photobucket.com/albums/c2...5B5B5F46E0.jpg
Quote:
Originally Posted by Hermes
schweet
So awesome!!!! Im gonna be doing the same thing lol. Three build right now and they are all four cylinders.
Thanks guys!

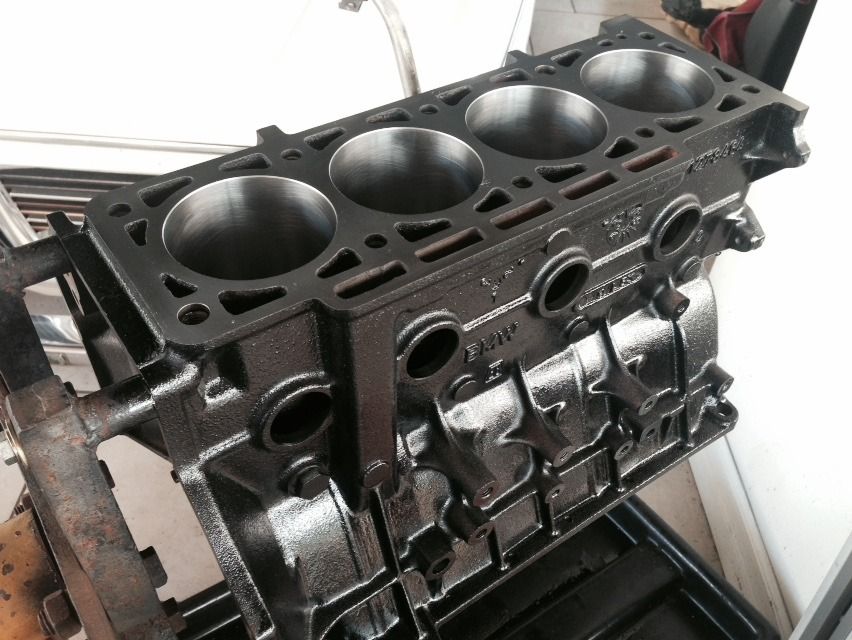

http://i29.photobucket.com/albums/c2...B961F64BEA.jpg

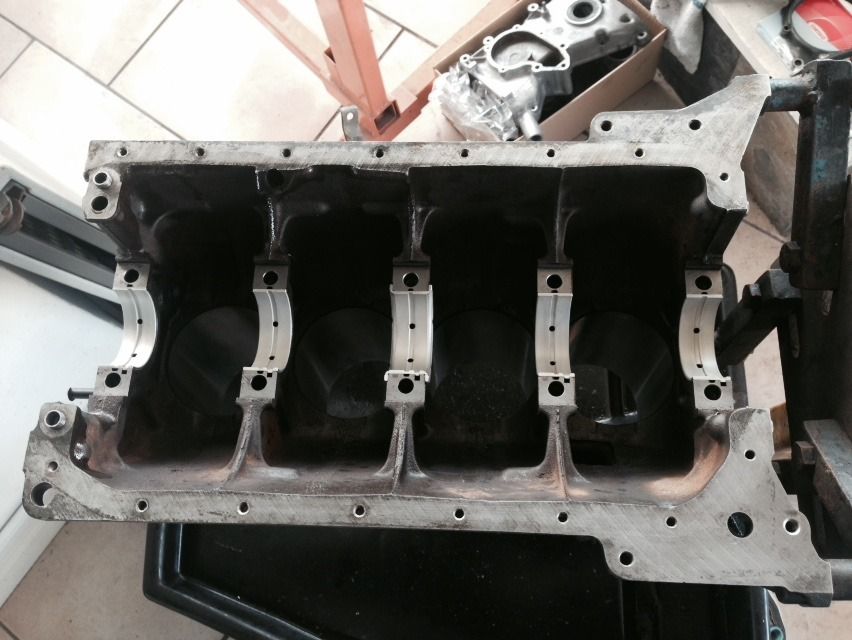

http://i29.photobucket.com/albums/c2...71DA73E1E2.jpg

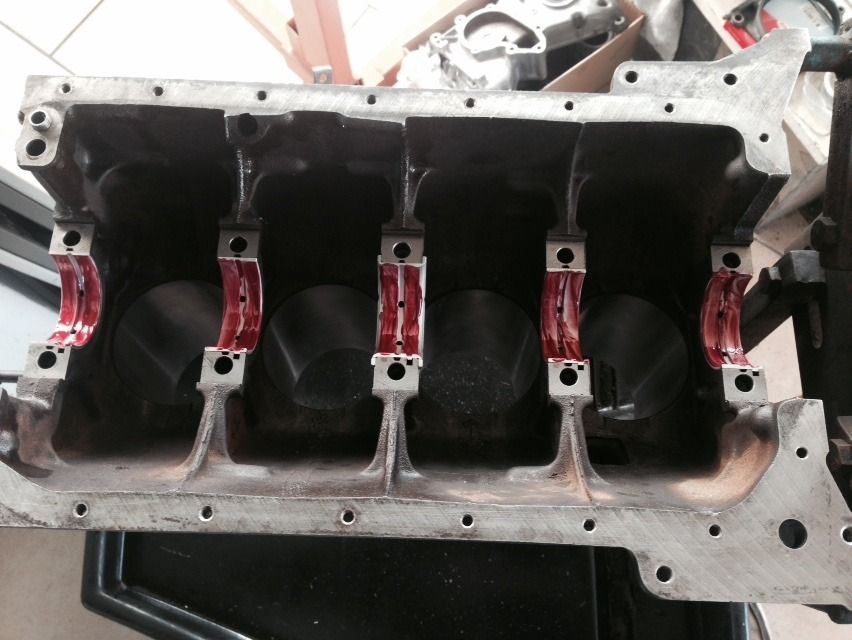

http://i29.photobucket.com/albums/c2...26EB87C3B9.jpg
http://i29.photobucket.com/albums/c2...044433C76E.jpg
Goal accomplished
http://i29.photobucket.com/albums/c2...1365F35855.jpg

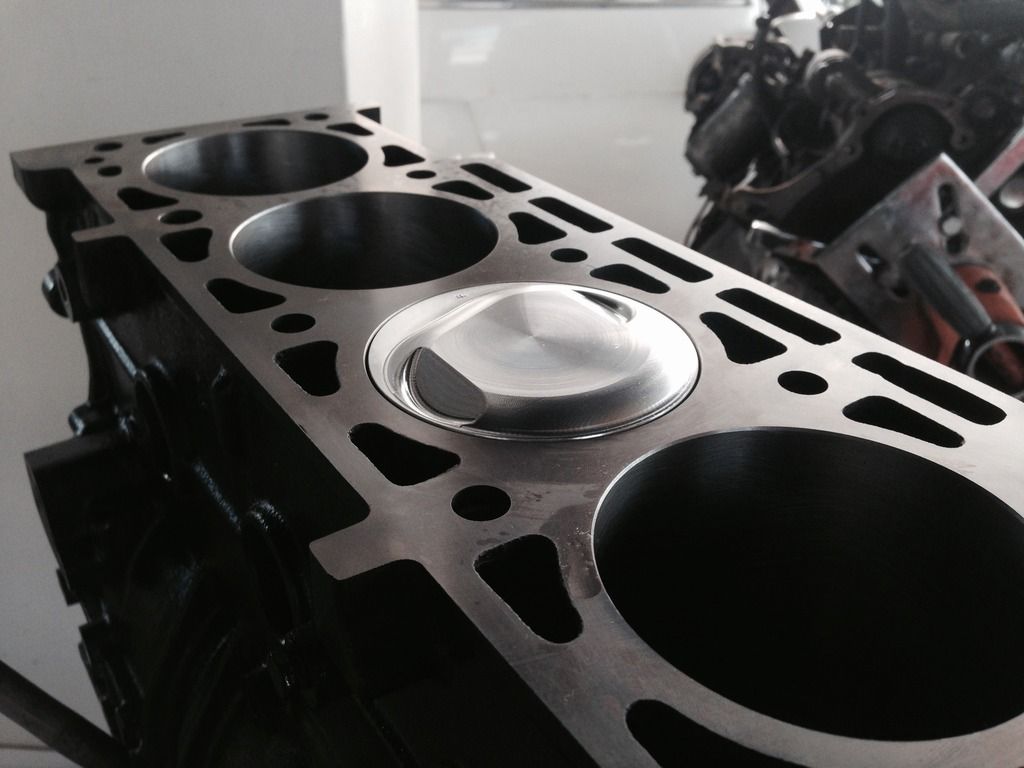

Test fit so we can take measurements
http://i29.photobucket.com/albums/c2...33BC01039A.jpg
rods are 0.25mm short from center to center so I need to send another set of rods to the machine shop to be sized correctly this time
Last pic is gorgeous. Very jealous of all this building going on.
Dude...I'm so pumped to tear into my engine now. Thanks to you and Stuart for the inspiration!!
Thanks guys! Justin, I'm just waiting to see pics from your engine build, that will be fun!
