This one? 25-11-7-507-695 Picture 18/19 (or 50)? http://www.pelicanparts.com/bmw/tech...t_Bushings.htmQuote:
Originally Posted by Hermes
Printable View
This one? 25-11-7-507-695 Picture 18/19 (or 50)? http://www.pelicanparts.com/bmw/tech...t_Bushings.htmQuote:
Originally Posted by Hermes
Neither. referencing this pic:Quote:
Originally Posted by ELCID86
http://www.realoem.com/bmw/diagrams/i/f/153.png
He's talking about part #10 which your kit replaces with something undoubtedly harder and longer lasting.
If it was me, in addition to your kit, I'd replace both #2's, #5, and the pin #15. That covers all the reported sources of slop.
I think those are the parts I have targeted. Aren't pictures # 18 & 19 on pelican the same as #2 above (25-11-7-507-695)?
Attachment 15705
#10s are already addressed on this SSK (included).
Similar. The ZHP carrier is forked in the front and uses 2x 25-11-7-519-670Quote:
Originally Posted by ELCID86
Hmm, I thought that's where the 695 went. Do I need them and the 670 or is it instead of the 695?
Attachment 15706
The E46 used two different carriers. RealOEM show this one for up to 06/2003 and is the one in the DIY on Pelican
http://www.realoem.com/bmw/showparts...75&hg=25&fg=05
This is the one for E46 from 06/2003. It uses the carrier that is forked in the front and the bushings are 25-11-7-519-670
http://www.realoem.com/bmw/showparts...13&hg=25&fg=05
Thanks so much!Quote:
Originally Posted by wsmeyer

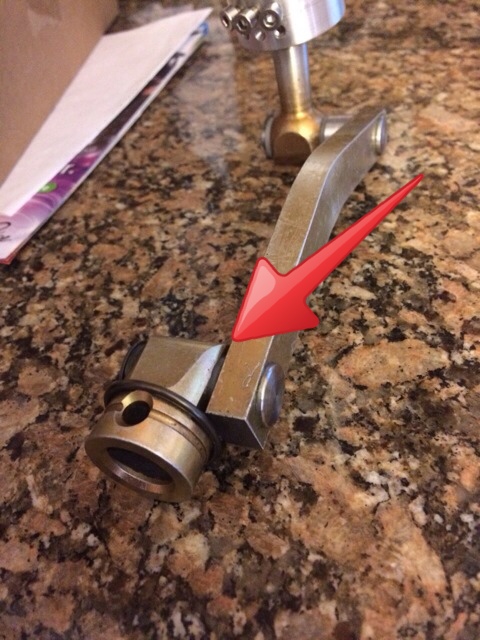

I'm referring to this
Attachment 15707
RIght JP. Those are new and included.
What I asked the shop to have on hand is:
#5117519670 (x2)
http://www.realoem.com/bmw/showparts...13&hg=25&fg=05
Additionally, one of these #25111222015, Bearing, shifting arm, and Dowel pin # 23411466134
Nice arrow :applauseQuote:
Originally Posted by Hermes
Those are the #10's in the RealOEM pics. my recommendation was:
"If it was me, in addition to your kit, I'd replace both #2's, #5, and the pin #15. That covers all the reported sources of slop."
